DESCRIPTION:
Horizontal centrifugal pumps, single stage and axial suction with vortex impeller, dismounting support foot allowing setting of discharge flange in 3 different positions.
APPLICATION:
Transfer of slurry and sludge, in ecology, in industrial processes, in food processing, sugar and paper industries.
IMPELLER:
Vortex impeller
THÔNG SỐ KỸ THUẬT
| Motor outout (P2): | 1,5 ÷ 30 kW |
| Head H: | 1 ÷ 43 m |
| Flow Q: | 1 ÷ 140 l/sec |
| Discharge size (DN): | 50 ÷ 200 |
| Materials: | Cast Iron – AISI316 |
| Brand | POMPE ROTOMEC |
| Made in | ITALY |

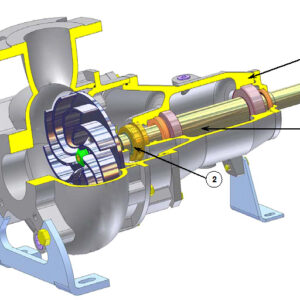

TECHNICAL CHARACTERISTICS
1 – BEARINGS SUPPORT:
Supporting is realized with single and double ball bearings dimensioned to assure the best reliable running, shielded by means of seal gasket.
Standard: oil lubrication.
2 – MECHANICAL SEALS:
A double tandem mechanical seals in oil bath or, on request, flushed by external source is installed.
3 – SHAFT:
Shaft in stainless steel AISI 420 oversized for heavy duty.
SPECIAL VERSION
In option it is available the vertical construction with column pipe lenght on request.
